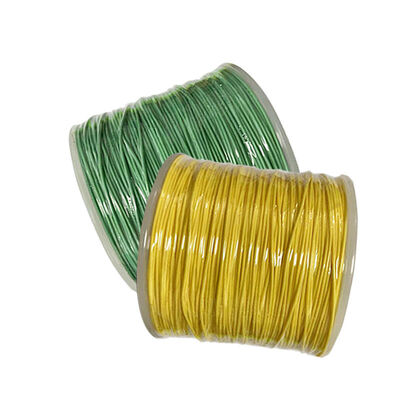

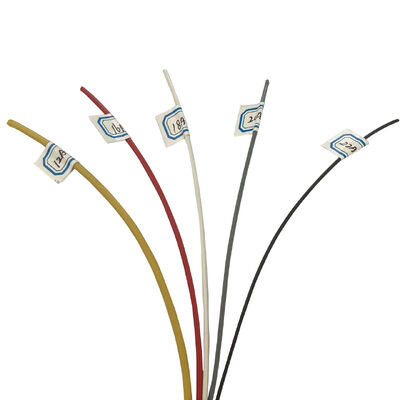

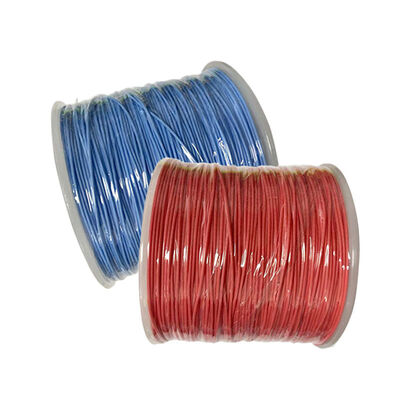

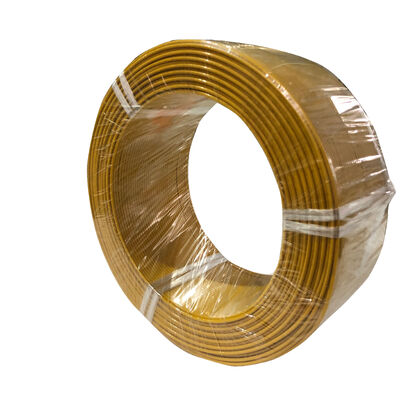

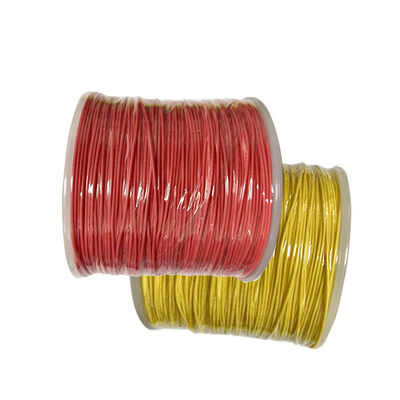

High Temperature Resistance ETFE Wire with Tinned Copper Conductor and 7 Strands Tefzel Cable

500
MOQ
High Temperature Resistance ETFE Wire with Tinned Copper Conductor and 7 Strands Tefzel Cable
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Bahan Konduktor: Tembaga Kaleng, Tembaga Berlapis Kaleng
Diameter: 22 AWG, 20 AWG, 24 AWG, 18 AWG, 16 AWG
Bahan Isolasi: ETFE
Nilai Tegangan: 600V atau Di Bawah
Tipe Konduktor: Terdampar, terdampar atau padat
Membentuk: Bulat
Ukuran kawat tunggal: 1,2mm, 1,0mm, 0,5mm, 0,3mm
Kisaran suhu: -65℃~+150℃
Ketebalan isolasi: 0,15mm, 0,2mm, 0,33mm
Resistensi konduktor maksimal: 239 Ω/Km, 150 Ω/Km, 94,2 Ω/Km, 32,4 Ω/Km, 20,4 Ω/Km, 16,6 Ω/Km, 10 Ω/Km, 6,63 Ω/Km, 4,13 Ω/Km
Jumlah core: Inti tunggal atau beberapa inti
Daerah bagian: 0,08 mm2, 0,14 mm2, 0,2 mm2, 0,4 mm2, 0,6 mm2, 1 mm2, 1,2 mm2, 2 mm2, 3 mm2, 5 mm2
Konstruksi Konduktor: 7/0.12, 7/0.16, 7/0.2, 19/0.16, 19/0.2, 19/0.26, 19/0.28, 19/0.36, 37/0.32, 37/0.4
Referensi OD: 0,66mm, 0,78mm, 0,9mm, 1,1mm, 1,3mm, 1,7mm, 1,8mm, 2,46mm, 2,9mm, 3,46mm

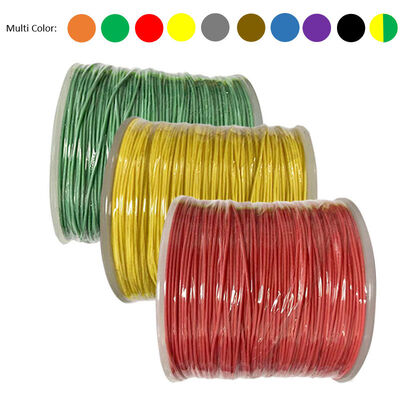

Pilihan Warna: Kuning, Merah, Oranye, Hitam, Hijau, Ungu, Biru
Menyoroti:

High Temperature Resistance ETFE Wire

,

Tinned Copper Conductor Tefzel Cable

,

7 Strands ETFE Insulated Wire
Informasi dasar
Tempat asal: Hunan, Tiongkok
Nama merek: Sanco cable
Nomor model: Seri ETFE
Syarat-syarat pembayaran & pengiriman
Deskripsi Produk
High Temperature ETFE Wire Tinned Copper 7 Strands Tefzel Cable
ETFE (ethylene tetrafluoroethylene) is a high-performance fluoropolymer used for electrical wire insulation. ETFE insulated wires offer exceptional electrical properties including high temperature resistance, excellent dielectric strength, low friction, and superior chemical resistance.
Applications
These cables are widely used in demanding applications across aerospace, automotive, electronics, and telecommunications industries where exposure to high temperatures, corrosive chemicals, and mechanical stress is common.
Key Advantages
  • High temperature resistance: Withstands temperatures up to 150°C (302°F) without degradation
  • Chemical resistance: Highly resistant to fuels, acids, solvents, and harsh environments
  • Excellent electrical properties: Superior dielectric strength and low dielectric constant for efficient signal transmission
  • Mechanical strength: Durable construction resistant to abrasion, impact, and mechanical stress
  • Lightweight and flexible: Easy installation and routing capabilities
Cable Construction and Specifications
SpecificationDetails
Conductor MaterialsTinned Plated Copper or Silver Plated Copper
Conductor TypeStranded
Number CoreSingle Core or Multiple Cores
InsulationETFE, FEP, PTFE, PFA Insulated
Rated VoltageAC 600V and Below
Rated Temperature-65°C to +150°C
ColorRed, White, Black, Blue, Green, Yellow, Brown, Yellow/Green
High Temperature Resistance ETFE Wire with Tinned Copper Conductor and 7 Strands Tefzel Cable 0
Detailed Specifications by Wire Gauge
Wire GaugeSection Area (mm²)Conductor Construction Piece/Diameter (mm)Insulation Thickness (mm)Reference OD (mm)Max. Conductor Resistance at 20℃ (Ω/Km)
28 AWG0.087/0.120.150.66239
26 AWG0.147/0.160.150.78239
24 AWG0.27/0.20.150.9150
22 AWG0.4/0.319/0.160.151.194.2
20 AWG0.6/0.519/0.20.151.332.4
18 AWG119/0.260.21.720.4
16 AWG1.219/0.280.21.816.6
14 AWG219/0.360.332.4610
12 AWG337/0.320.332.96.63
10 AWG537/0.40.333.464.13
Company Information
High Temperature Resistance ETFE Wire with Tinned Copper Conductor and 7 Strands Tefzel Cable 1
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier for China's aerospace and military sectors with 21 years of experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive pricing for global customers.
Our Products
We specialize in high temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and custom solutions.
High Temperature Resistance ETFE Wire with Tinned Copper Conductor and 7 Strands Tefzel Cable 2
Exhibition & Customer Visits
High Temperature Resistance ETFE Wire with Tinned Copper Conductor and 7 Strands Tefzel Cable 3
Exhibition Participation
We have participated in major international exhibitions including the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, and Power-Gen India.
Global Reach
As a professional wire and cable manufacturer, we have exported products to the US, Venezuela, India, Vietnam, Bangladesh, Africa and other countries. We welcomed the delegation from Ezeagu Government of Nigeria to our factory in 2017, establishing long-term partnerships.
Certifications and Honors
High Temperature Resistance ETFE Wire with Tinned Copper Conductor and 7 Strands Tefzel Cable 4
  • Participated in China's manned space flight project development and construction for Shenzhou 7
  • Contributed to China's first manned space flight mission
  • Collaborated with China Academy of Launch Vehicle Technology on the "Arrow of God" project for space exploration
Why Choose Us
High Temperature Resistance ETFE Wire with Tinned Copper Conductor and 7 Strands Tefzel Cable 5
As a stable supplier to China's aerospace and military sectors, customer satisfaction is our primary objective.
Our Services
  • Free technical consultation before, during, and after sales
  • Free sample and design services
  • Monitoring and detection services during manufacturing
  • 100% free insurance for internal transportation
  • OEM & ODM services available
  • Small order quantities accepted
Packing & Shipping
High Temperature Resistance ETFE Wire with Tinned Copper Conductor and 7 Strands Tefzel Cable 6
We utilize fast international express delivery services including DHL, UPS, FEDEX, TNT, and EMS. We can also arrange air, sea, or land transportation according to your requirements.
Frequently Asked Questions
High Temperature Resistance ETFE Wire with Tinned Copper Conductor and 7 Strands Tefzel Cable 7
Are you a manufacturer or trading company?
We are a professional manufacturer engaged in research, development, and sales of military and consumer cable wire and cable compounds. The company is located in Hunan Province, China.
What is your company's strengths?
We are a stable wire and cable supplier for China's aerospace and military with 21 years of experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive offers for global customers.
How do you guarantee your product quality?
Quality is our priority. We implement strict quality control from design and materials procurement through manufacturing, semi-finished product testing, and finished product inspection.
What's the warranty of your products?
We provide a 1-year complete warranty service. If products have quality problems, we will replace or return them unconditionally.
How can I get the samples?
We can prepare sample orders for you. If sample quantities are small and available in our stock, we can provide them free of charge, with freight costs covered by the customer.
