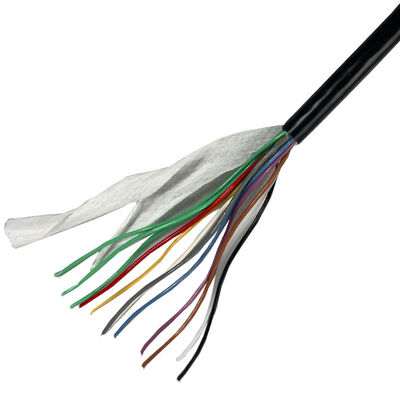

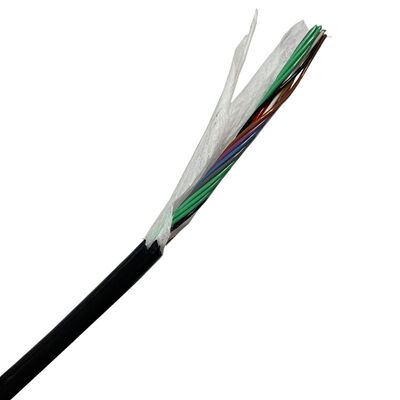

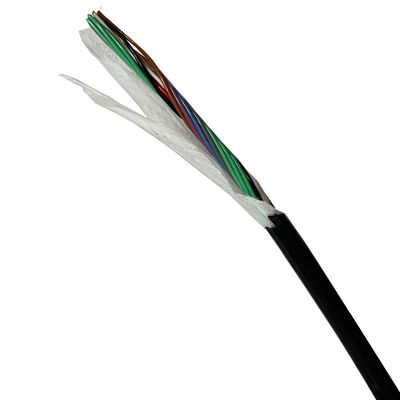

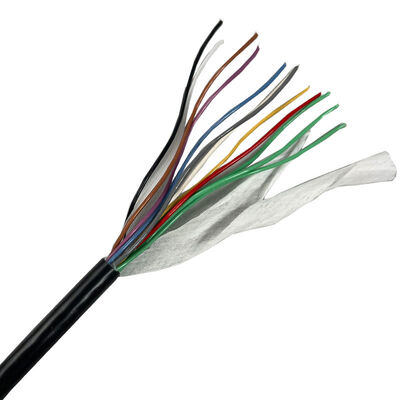

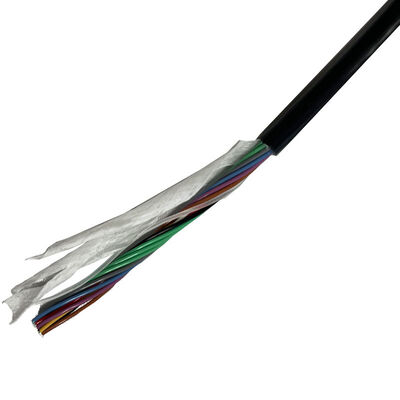

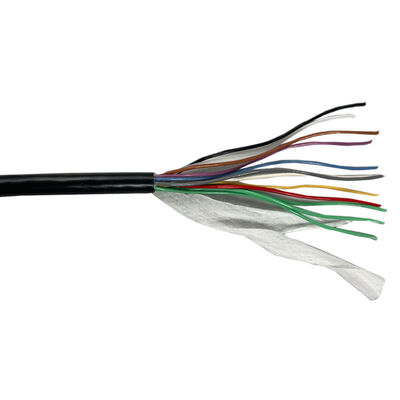

Multicores ETFE Insulated Wire with High Temperature Resistance and 600V Rated Voltage TPU Cable

500
MOQ
Multicores ETFE Insulated Wire with High Temperature Resistance and 600V Rated Voltage TPU Cable
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Bahan Konduktor: Tembaga, Tembaga Berlapis Perak atau Tembaga Berlapis Kaleng
Diameter: 24 AWG
Bahan Isolasi: FEP
Nilai Tegangan: 600 v
Tipe Konduktor: Terdampar, terdampar atau padat
Ukuran kawat tunggal: 0,2 mm
Kisaran suhu: -65C ~ +200°C
Nomor inti: 1 Inti, 2 Inti, 3 Inti, 4 Inti, 5 Inti..
Jenis isolasi: FEP, PTFE, PFA, ETFE
Bahan Kepang: Tembaga berlapis perak atau Tembaga Berlapis Kaleng
Bahan selubung: jaket TPU
Nilai Tegangan: AC 600V atau Lebih Rendah
Suhu kerja: -65°C ~ +200°C
Pilihan Warna: Putih, biru, merah, hitam, kuning, hijau, transparan, kuning/hijau
OD Maks: 1,2mm (24AWG)
Menyoroti:

Multicores ETFE Insulated Wire

,

High Temperature Resistance ETFE Cable

,

600V Rated Voltage TPU Cable
Informasi dasar
Tempat asal: Hunan, Tiongkok
Nama merek: Sanco cable
Nomor model: Seri AFF-200
Syarat-syarat pembayaran & pengiriman
Deskripsi Produk
Multicores ETFE Insulation High Temperature TPU Cable
Product Overview

ETFE Insulated Wire is engineered using advanced ETFE (Ethylene Tetrafluoroethylene) material, which provides exceptional thermal and electrical insulation properties. This makes it an ideal choice for use in high-temperature environments where traditional wire insulation materials may fail to deliver the required level of protection.

Our ETFE Insulated Wire withstands extreme temperatures ranging from -200°C to 150°C without compromising structural integrity or electrical performance. This makes it suitable for various industries including aerospace, automotive, and industrial manufacturing where exposure to harsh operating conditions is common.

In addition to thermal resilience, ETFE Insulated Wire offers excellent resistance to chemicals, oils, and solvents, ensuring long-term durability and reliability in challenging environments. It is designed to meet stringent safety standards and delivers consistent electrical performance with low dielectric constant and high dielectric strength, ensuring reliable power transmission and signal integrity.

Key Features
  • Small diameter saves space
  • Excellent electrical characteristics, mechanical strength, heat resistance, chemical resistance, and flame resistance
  • Excellent low temperature characteristics
  • Higher tensile and impact strength than PTFE with greater dielectric strength and radiation resistance
Cable Specifications
Conductor Materials Tinned Plated Copper or Silver Plated Copper
Conductor Type Stranded or Solid
Number Core 1 Core, 2 Cores, 3 Cores, 4 Cores...
Insulation FEP, PFA, PTFE, ETFE Insulated
Sheath TPU Jacket
Rated Voltage 600V or Below
Rated Temperature -65°C to +200°C
Color White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green...
Multicores ETFE Insulated Wire with High Temperature Resistance and 600V Rated Voltage TPU Cable 0
Product Types
Type Name
AF-200 Silver Plated Copper Core FEP Insulation Install Wire
AF-200-1 Tin Plated Copper Core FEP Insulation Install Wire
AFP-200 Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire
AFS-200 Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire
AFSP-200 Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire
Cable Structures
Wire gauge Cross-section area Conductor structure Max. OD of cable
36AWG 0.013mm² 7/0.05 0.65 | 0.85 | 1.1 | 1.3
32AWG 0.035mm² 7/0.08 0.75 | 0.95 | 1.2 | 1.4
30AWG 0.05mm² 7/0.10 0.85 | 1.05 | 1.35 | 1.6
28AWG 0.07mm² 7/0.12 0.9 | 1.1 | 1.4 | 1.65
- 0.1mm² 7/0.14 1 | 1.2 | 1.55 | 1.75
26AWG 0.14mm² 7/0.16 1.1 | 1.3 | 1.65 | 1.95
24AWG 0.2mm² 19/0.12 1.2 | 1.4 | 1.75 | 1.98
- 0.3mm² 7/0.23 1.25 | 1.48 | 1.8 | 2.05
22AWG 0.35/0.40mm² 19/0.16 1.4 | 1.6 | 1.95 | 2.2
20AWG 0.5mm² 19/0.18 1.6 | 1.8 | 2.2 | 2.4
- 0.6mm² 19/0.20 1.75 | 1.98 | 2.3 | 2.5
- 0.75/0.80mm² 19/0.23 1.8 | 2.1 | 2.4 | 2.6
18AWG 1mm² 19/0.26 2 | 2.2 | 2.6 | 2.9
16AWG 1.2mm² 19/0.28 2.2 | 2.4 | 2.8 | 3.1
- 1.5mm² 19/0.32 2.4 | 2.6 | 3.1 | 3.3
14AWG 2mm² 19/0.37 2.7 | 2.9 | 3.4 | 3.6
- 2.5mm² 37/0.30 3.4 | 3.6 | 4.2 | 4.4
12AWG 3mm² 37/0.32 3.6 | 3.8 | 4.4 | 4.6
- 4mm² 37/0.37 4 | 4.2 | 4.8 | 5.1
10AWG 5mm² 37/0.41 4.5 | 4.7 | 5.3 | 5.6
- 6mm² 37/0.45 4.8 | 5 | 5.7 | 5.9
8AWG 8mm² 133/0.28 6 | 6.5 | 6.8 | 7.3

Note: FEP high temperature lead wire specification and core number are not limited to above regulation - they can be customized.

Company Information

Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military with 21 years of experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive pricing for global customers.

Our main products include: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and more. We have advanced production facilities, integrated management systems, and collaborate with universities and research institutes. We can customize cables according to customer requirements.

Multicores ETFE Insulated Wire with High Temperature Resistance and 600V Rated Voltage TPU Cable 1 Multicores ETFE Insulated Wire with High Temperature Resistance and 600V Rated Voltage TPU Cable 2
Exhibitions & Visits

We have participated in numerous international exhibitions including the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, and Power-Gen India.

As a professional wire and cable manufacturer, Xiangtan Shenzhou Special Cable Co., LTD has exported products to US, Venezuela, India, Vietnam, Bengal, Africa and other countries. We warmly welcomed the delegation from Ezeagu Government of Nigeria who visited our factory in 2017 as long-time partners.

Multicores ETFE Insulated Wire with High Temperature Resistance and 600V Rated Voltage TPU Cable 3 Multicores ETFE Insulated Wire with High Temperature Resistance and 600V Rated Voltage TPU Cable 4
Certifications & Honors
Multicores ETFE Insulated Wire with High Temperature Resistance and 600V Rated Voltage TPU Cable 5
  • Participated in China manned space flight project development, construction and related cooperation for Shenzhou 7 manned space flight
  • Carried out China manned space project development, construction and test tasks for first manned flight
  • Collaborated with China Academy of Launch Vehicle Technology Institution on the "Arrow of God" project for China's astronaut space exploration
Why Choose Us
Multicores ETFE Insulated Wire with High Temperature Resistance and 600V Rated Voltage TPU Cable 6
  • Free technical consultation service before, during, and after sales
  • Free sample and design services
  • Fee service for special monitoring and conduct detection during manufacturing
  • 100% free insurance for internal transportation
  • OEM & ODM welcome
  • Small orders accepted
Packing & Shipping
Multicores ETFE Insulated Wire with High Temperature Resistance and 600V Rated Voltage TPU Cable 7
Frequently Asked Questions
Multicores ETFE Insulated Wire with High Temperature Resistance and 600V Rated Voltage TPU Cable 8
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer, researching, developing and selling military and consumer cable wire and cable compound. The company is located in Hunan Province, China.
Q: What is your company's strengths?
A: We are a stable wire and cable supplier of China's aerospace and military with 21 years experience. Cable compounds are produced by ourselves, enabling superior quality and competitive offers.
Q: How do you guarantee your product quality?
A: Quality is our priority. We implement strict quality control from design and materials procurement through manufacturing, semi-finished product testing, and finished product inspection.
Q: What's the warranty of your products?
A: We provide 1 year complete warranty service. If products have quality problems, we will replace or return unconditionally.
Q: How can I get the samples?
A: We can make sample orders. If sample quantity is small and available in stock, we can provide them free with freight absorbed by your side.
